Projector



Model

Christie DHD1075-GS

Type

Laser Phosphor

Resolution

1920 x 1080 HD

Brightness

10,000 ISO lumens

Contrast

300,000:1



Dimensions

Length: 22.2" (555mm)
Width: 19.2" (480mm)
Height: 7.6" (190mm)

Weight

54.9lbs (24.9kg)

Power

100-240 VAC @ 50/60 Hz (w/ 15A fuse)
10 Amps
1070 Watt

more Information

Christie Website


Available Lenses


1.52-2.89:1 zoom

Well suited for most projection environments.

Unless otherwise requested, all projectors come with this lens.



0.75-0.95:1 Zoom

This is a short throw lens, best suited for situations where the distance between projector and screen is limited.


*Note there is only one of these lenses available. Please request well in advance to ensure availability.


Signal Converter & Cable

BNC Cables.jpeg

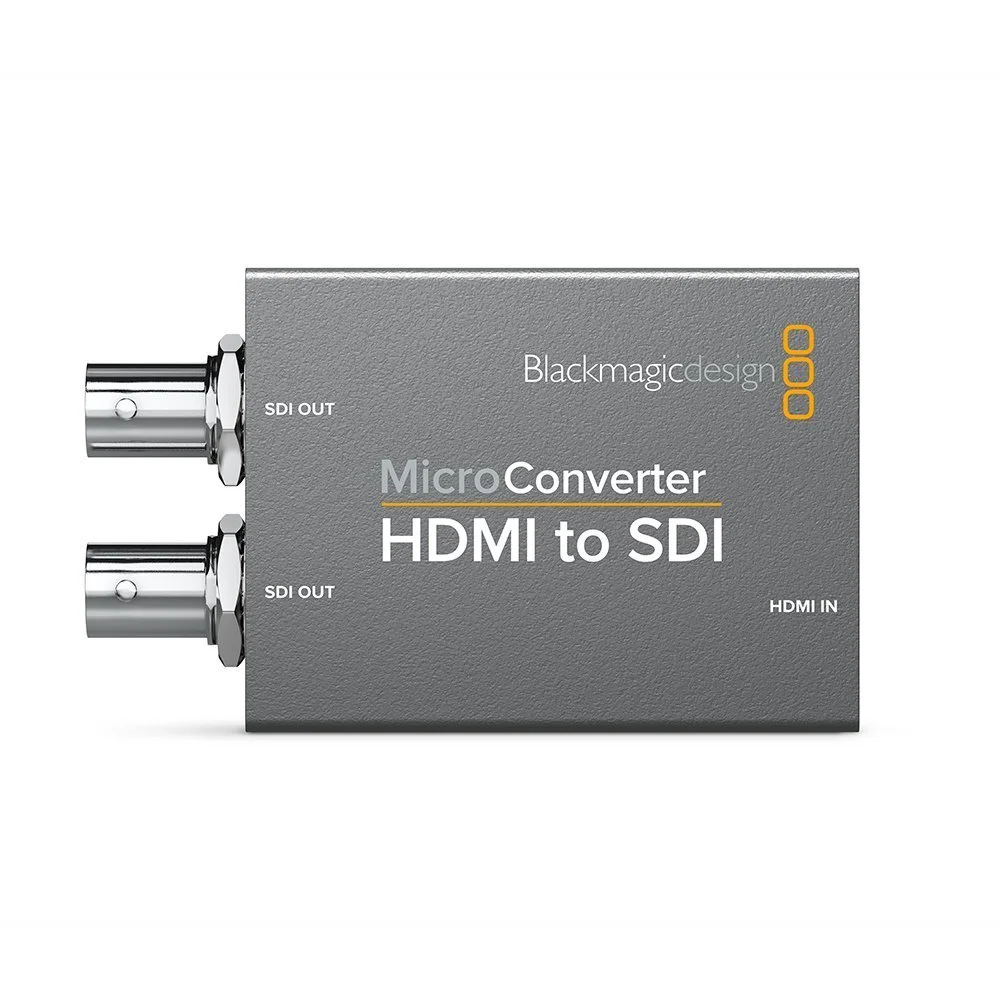

Each projector kit comes with a HDMI to SDI adapter and 100 foot coaxial cable. This adapter allows you to send a video signal over long distances using very affordable coaxial cable (RG-59) with a BNC connection. Because the projector has an SDI input, the conversion is only necessary once.

Note, in order to use this method of connection, you need an HDMI signal out of your playback device. Don't worry if you don't have one though, there are options.  See F.A.Q. for more details.




Ceiling Mount

The included mount kit allows the projector to be hung from a grid. The extender rod adds 16.45" - 24.33" to the drop distance. This mount does not come attached to the projector but is very easy to install. See our Learn section for more information.


Accessories



  • Projector remote control

  • Mini display port to HDMI adapter cable (6 feet)

  • HDMI cable (3 feet)

  • AC cable

  • Philips head screwdriver

  • Allen Key


Road case


Everything fits into a road case for easy transportation. Yes it has wheels!

Dimensions : 28" (L) x 24" (W) x 24" (H)

Weight : 70 lbs when loaded.

(Please don't try to lift this into your car by yourself unless you have big muscles. )
